Real-Time BGP Visibility with BGP Monitoring Protocol

By Admin | 01-11-2025

Abstract

In today’s high-performance networks, monitoring and troubleshooting BGP in real time is critical to routing stability, anomaly detection, and service availability. Although SNMP has become the de facto standard for network device monitoring, its limitations have become apparent in BGP-heavy environments where per-peer, per-route dynamics are important. SNMP, which is intended for overall device statistics such as CPU, memory, and interface counters, only provides high-level BGP statistics and only via standard MIBs. It lacks the granularity required to monitor each route ad or withdrawal or the instant effect of policy on them. That’s where the BGP Monitoring Protocol comes in: BMP is a non-intrusive, event-driven method for routing to publish BGP info to an external collector, which allows the recipient to see everything from BGP session events to RIB modifications to policy application in real time. Imagine a scenario where a network operator believes a BGP route leak from a downstream provider is causing havoc. Though SNMP will only show the number of prefixes counts spiking during the following query, BMP will show the exact moment a new prefix arrived, along with its BGP Path Attributes and peer name, allowing the operator to observe the behaviour in real time. Boosted by BMP granular data, operators can identify prefix hijacks, route leaks, session flaps, or unanticipated policy results time sooner than with SNMP. This results in faster reclamations, security, and general network adaptivity. In a word, BMP transforms BGP monitoring from a periodic photo into a real-time firehose of useful to usability that your monitoring infrastructure can no longer manage without.

How BMP Works

  1. BMP-capable routers establish TCP sessions with an external BMP collector.

  2. The router sends BGP updates and state changes i.e. Peer up/down, route additions/deletions, RIB snapshots to the BMP collector in structured messages.

  3. The collector stores the data for:

    • BGP visibility at various routers

    • Real-time BGP event monitoring

    • Long-term trend analysis

Key points:

  • No impact on BGP operation itself—BMP listens.

  • Multiple message types i.e. peer up/down, route monitoring, stats.

  • It provides per-peer and per-session data.

    Scenario: GTPL provider operates a core network comprising multiple routers across different regions. The network runs BGP as its primary routing protocol, handling complex peering relationships, customer traffic, and internet transit services. Ensuring real-time visibility into BGP operations is critical for proactive incident management, trend analysis, and capacity planning.

    Let's deep dive configuration part --

    At Mumbai R1--

Mumbai-R1 (config) #router bgp 64512
Mumbai-R1 (config-router) # bgp router-id 8.8.8.8
Mumbai-R1 (config-router) # bmp server BMP_COLLECTOR address 192.0.2.10 port 5000 Mumbai-R1 (config-router) # bmp server BMP_COLLECTOR description "BMP Monitoring Collector"
Mumbai-R1 (config-router) # bmp server BMP_COLLECTOR initial-delay 60
Mumbai-R1 (config-router) #  bmp server BMP_COLLECTOR route-monitoring
Mumbai-R1 (config-router) #    bmp server BMP_COLLECTOR statistics
Mumbai-R1 (config-router) #    address-family ipv4 unicast
  Mumbai-R1 (config-router) # bmp server BMP_COLLECTOR
Mumbai-R1(config-router) # exit
Mumbai-R1(config)# exit
Mumbai-R1#

       At Pune R1--

Pune-R1# set protocols bmp station BMP_COLLECTOR collector-address 192.0.2.9
Pune-R1# set protocols bmp station BMP_COLLECTOR route-monitoring
Pune-R1# set protocols bmp station BMP_COLLECTOR statistics-reporting
Pune-R1# set protocols bmp station BMP_COLLECTOR pre-policy
Pune-R1# set protocols bmp station BMP_COLLECTOR post-policy

BMP route Monitoring Message captured by Wireshark

0000  00 03 00 00 02 0a  ... (Common Header: Version 3, Msg Type 2 [Route Monitoring])
0006  00 00 00 2c        ... (Payload Length: 44 bytes)
000a  ... Peer Header (Peer IP, ASN, BGP ID, etc.)
0030  ... BGP Update Payload:
      - Withdrawn Routes Length
      - Path Attributes
      - NLRI (Network Layer Reachability Information)

How to implement it?

BMP enabled routing

(1) Core routers are installed with BMP

(2) BMP is activated with each router opening a set of TCP connection to a dedicated centralized BMP collector.

BMP collector

(1)  A centralized BMP collector is enforced in a dedicated and centralized data centre

 (2)  The BMP collector receives live BGP updates, peer state changes, and RIB snapshots from all BMP-enabled routers.

(3) The BMP collector integrates with network performance dashboards and event correlation tools.

Applications of BMP protocol

1- Real time Monitoring

  • A peering session with upstream provider flaps

  • BMP collector records the peer-down event and captures the BGP withdrawal messages immediately

  • Operation engineers receive alerts and start troubleshooting immediately before it becomes an issue

2- Trend Analysis for Management

  • Management read a monthly BMP report

  • Number of BGP session resets by region

  • Volume of route announcements and withdraws

  • Patterns in prefix churn

  • RIB growth over time

These insights help with capacity planning and peering policy tuning

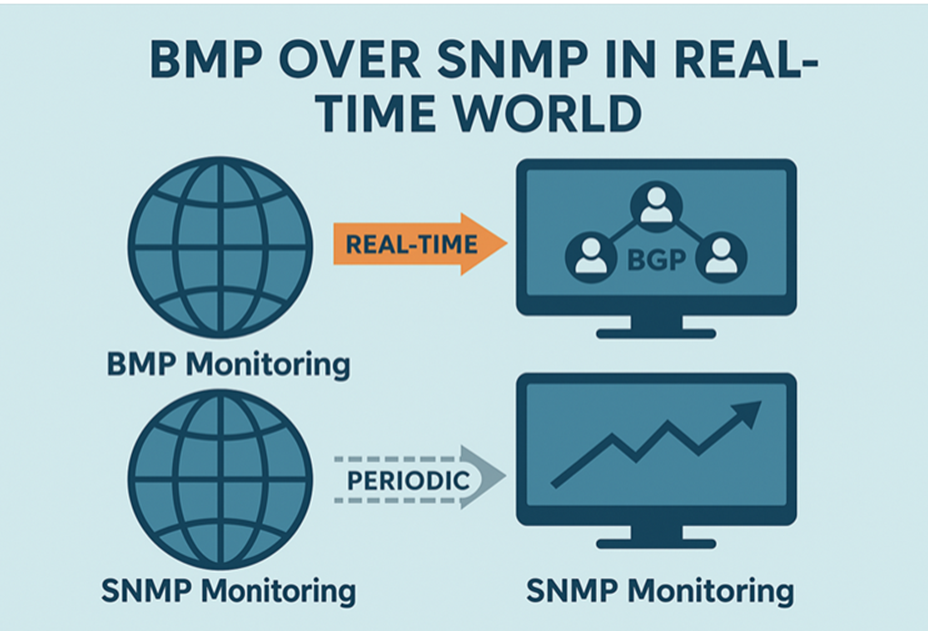

BMP is better than SNMP

  • While SNMP provides poll-based metrics at fixed intervals, BMP provides event driven, real-time insights into BGP

  • Full visibility into routing table changes, peer events, and network health

  • Management can take actions over their network before being forced to react to outdated, delayed, or incomplete SNMP alerts.

Impact on Core Network Operations

BMP implementation in the core network has brought the most radical change in the network operations team’s ability to act more efficiently. By allowing them to react to BGP insights in real-time and being event-driven, operations have drastically reduced MTTD and MTTR down to the point where they can act before anything’s impact a customer, such as unexpected peer flaps, leaks or hijacks. In addition to the ability to capture BGP session events, route changes, and peer state transitions as they happen instead of reacting with an SNMP poll after the fact, BMP allows for proactive time-based visibility across the entire routing fabric, with per-peer and per-route levels. Engineers can see where in the network the BGP updates are being originating and propagating and cut straight to the root cause and remediation activities. This has enabled a slew of benefits, in immediate troubleshooting, and more strategic planning activities. Data-driven peering relationships and routing policies and capacity planning are all now possible due to real-world prefixes being routed across daily deviations, RIB growth, or route advertisement patterns that help management optimize the organization’s topology and scaling needs.

Conclusion:

When operating in the current global network environment where it is defined by real-time, security and performance, this reliance on legacy tools to monitor such as SNMP is outpaced. Therefore, BGP Monitoring Protocol Next-gen network visibility is achieved through the use of. Operators can get detailed BGP event, session and routing table across their network immediately with the help of BMP. Using BMP enables network teams to detect anomalies in MTTD and MTTR, such as route leaks, hijacks and session flaps, as soon as they occur; this translates to improved incident response and data driven peering, capacity planning, and policy decision, turning reactive into proactive and strategic. In short, service providers and enterprises are provided with the necessary tools for a resilient, secure, and high-performance network. Saying no to BMP in exchange for BMP is a thing of the past, as survival in operations increasingly depends on ability.
